The Art and Science of Bending: Briefly introduction of Press Brake Operation

Introduction

and a science.

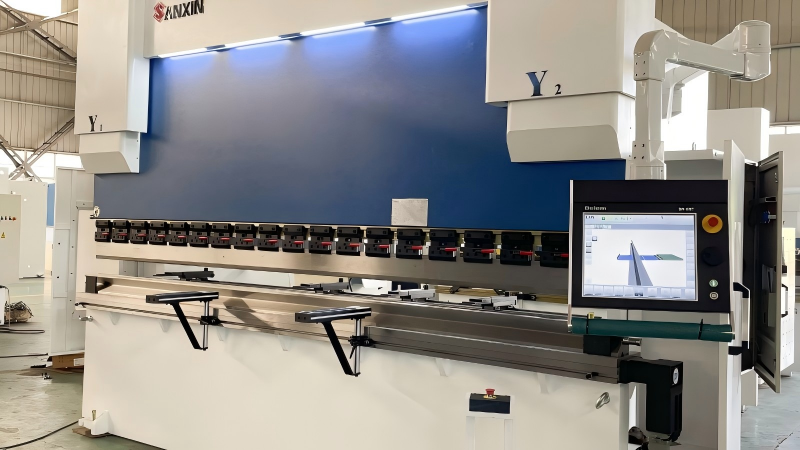

At its core, a press brake is a machine that bends metal sheets and plates. The basic principle involves two key components: a punch attached to the upper ram and a corresponding die fixed on the lower frame. The sheet metal is positioned between them, and upon activation, the ramforces the punch down, pressing the metal into the die cavity to create a precise bend. While the concept sounds simple, the execution requires meticulous attention to detail to achieve accurate, consistent, and high-quality results.

Bending Processes introduction

thickness—the operator must calculate the required tonnage (force) to achieve the bend without damaging the machine or the part. Crucially, they must also determine the bend allowance and bend deduction. These are mathematical calculations that account for the material's stretching and compression during bending, allowing the operator to know exactly how much flat material is needed to achieve the desired final dimensions after bending. Modern press brakes often have advanced CNC systems with software that automates these complex calculations, but understanding the underlying principles is also important.

With the calculations complete, the setup phase begins. This involves selecting the correct punch and die. The choice of tooling is paramount. The width and shape of the die opening (the V-die) directly determine the inside radius of the bend and influence the amount of force required. A narrower V-die requires less tonnage but increases the risk of damaging the material, while a larger V-die is used for thicker materials and larger bend radii. The punch’s tip radius defines the bend's inner profile. Using the wrong combination can lead to inaccurate angles, surface marking, or even catastrophic tooling failure.

The actual bending process is where skill meets technology. The operator carefully positions the metal against the back gauge—a programmable stop that ensures each bend is made at the exact correct location on the sheet. The accuracy of this positioning is critical for the part's overall geometry. On traditional machines, the operator would initiate the bend cycle, and the ram would descend to a predetermined depth to achieve a specific angle. However, modern CNC (Computer Numerical Control) press brakes have revolutionized this process.

CNC technology allows the operator to program the exact sequence of bends, the position of the back gauge, the ram's descent, and the required pressure for each operation. Sensors can provide real-time feedback, and advanced machines can even automatically compensate for slight variations in the material’s thickness or spring-back. Spring-back is the elastic recovery of the metal after the bending force is removed; it causes the metal to try to spring back slightly toward its original shape. Experienced operators must over-bend the material to a greater angle to compensate for this phenomenon, a factor that is automatically managed by sophisticated CNC systems.

Conclusion

In conclusion, the humble press brake is a masterpiece of industrial engineering. Moving from simple mechanical machines to today's computer-controlled powerhouses, the essence of bending remains a dance between calculation, preparation, and execution. It is a process that transforms flat, inert sheets of metal into strong, functional, and complex forms, driving innovation and construction across countless industries. It is a testament to human ingenuity's ability to shape the world, one precise bend at a time.
