A new star product developed by our company to meet the sheet metal industry's demands for high precision, high efficiency and eco-friendly low-carbon production.

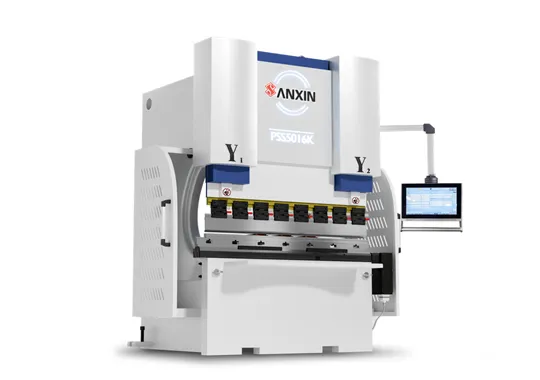

1. front of machine

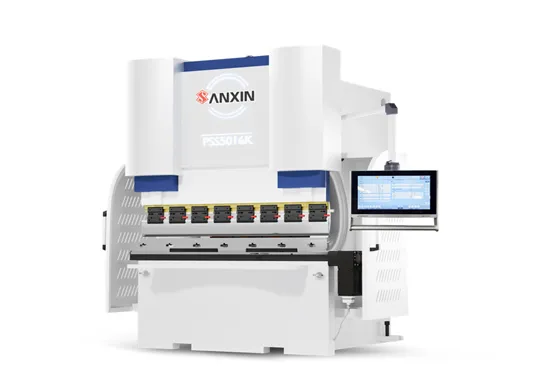

2. side of machine
3. behind of machine

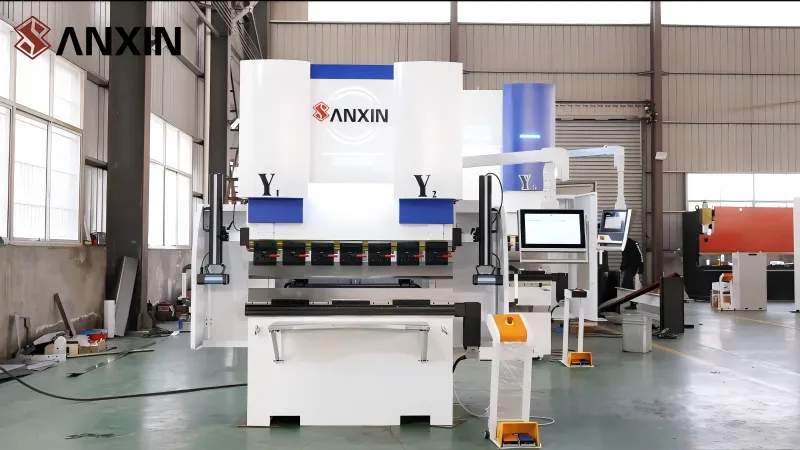

Watch video below to learn more details.
| Model/Unit | Bending Force | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Max Open Height | Servo Main Motor | Backgauge Travel | Slide Speed | X axis Speed | R axis Speed | Dimension L*W*H |
| Kn | Mm | Mm | Mm | Mm | Mm | Kw | Mm | mm/s | mm/s | mm/s | Mm | |
| 40T13K/6+1 | 400 | 1300 | 1090 | 300 | 150 | 400 | 5..5 | 600 | 180 | 450 | 200 | 1800*1500*2500 |
| 50T16K/6+1 | 500 | 1600 | 1300 | 300 | 150 | 400 | 7.5 | 600 | 200 | 450 | 200 | 2200*100*2600 |
| 70T20K/6+1 | 700 | 2000 | 1560 | 400 | 200 | 450 | 15*2 | 600 | 160 | 300 | 200 | 2600*1700*3000 |
| 100T25K/6+1 | 1000 | 2500 | 2000 | 400 | 200 | 450 | 20 | 600 | 160 | 300 | 200 | 3000*1700*2950 |
| 100T32K/6+1 | 1000 | 3230 | 2700 | 400 | 200 | 450 | 20 | 600 | 160 | 300 | 200 | 3700*1700*2950 |

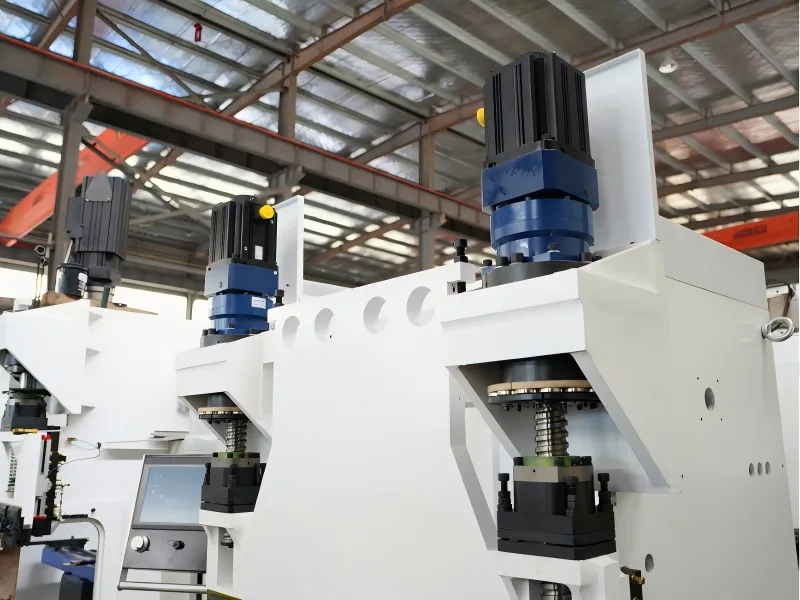

High-power servo motors drive the ram movement directly.
Fast response and low energy consumption compared with hydraulic models.
Delivers consistent high precision during continuous bending cycles.

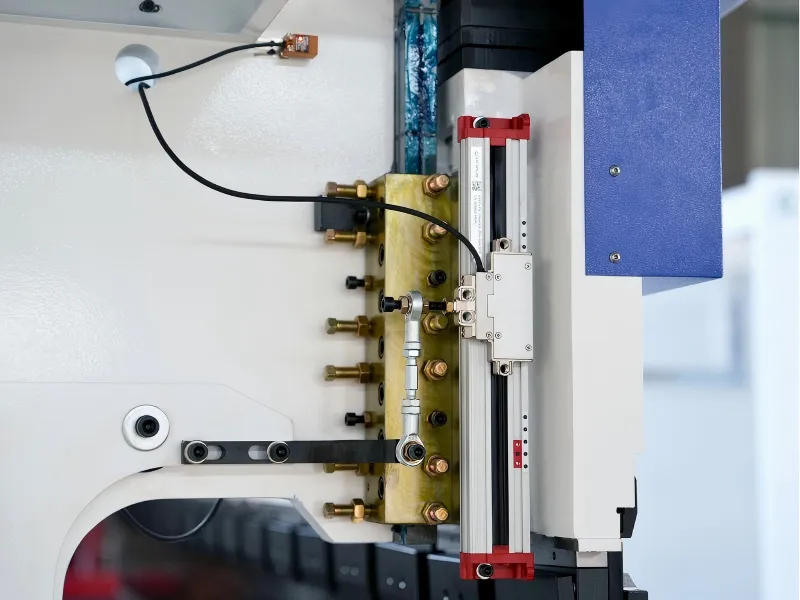

The grating ruler is connected to the workbench, and the deformation of the column will not affect position detection, it can measure the exact distance between the slider and the workbench.
Necessary correction can be made to ensure that the workbench and slider are always in a balanced state.

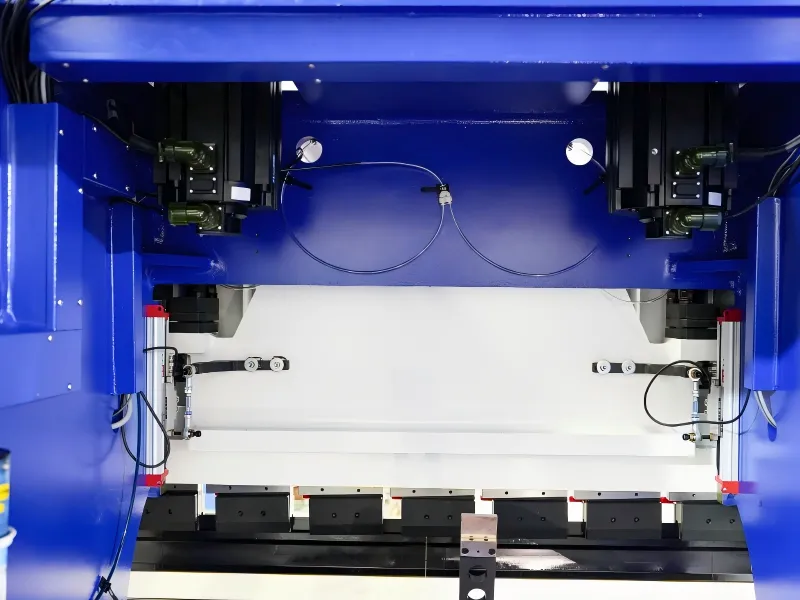

Dual independent servo units achieve synchronous motion control.
Excellent parallelism of upper beam under varying loads.
Maintains long-term machining stability for wide workpieces.

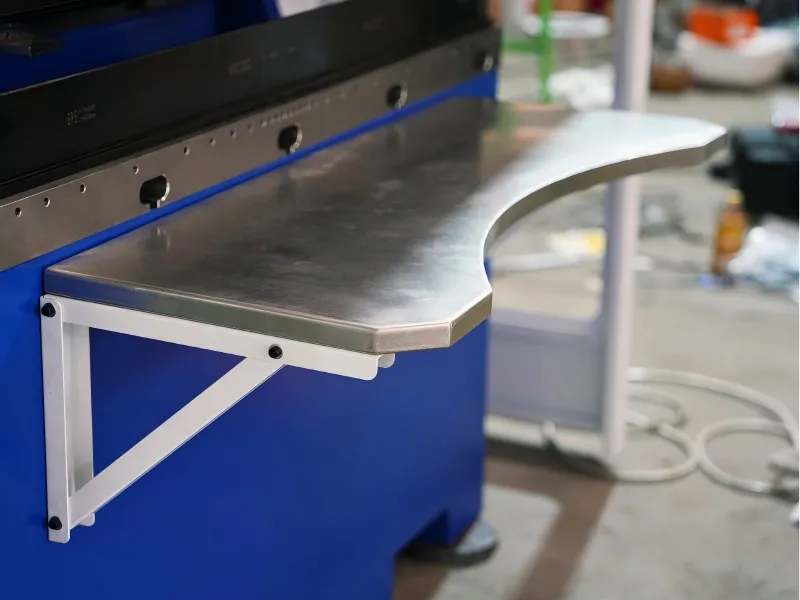

Sturdy metal support surface assists sheet positioning.
Reduces workpiece sagging when processing long metal plates.
Improves operation convenience for workshop operators.

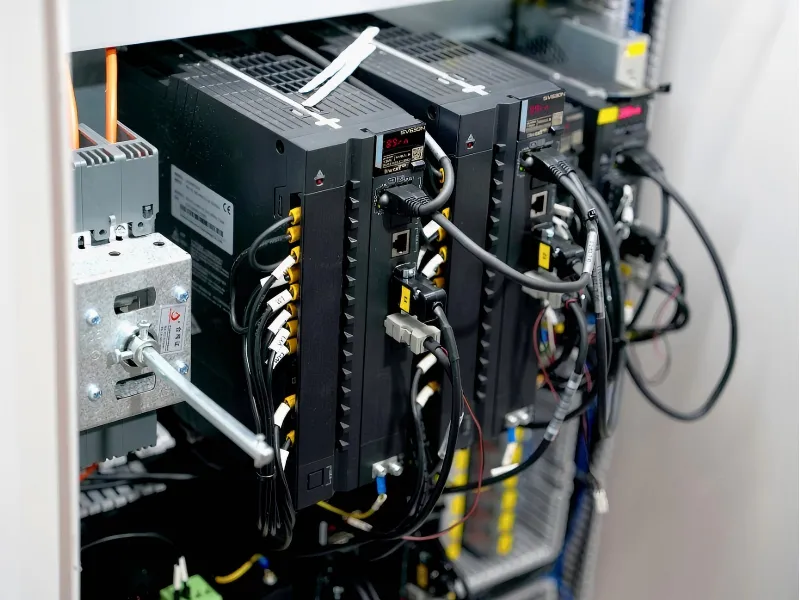

Modular servo controller with high-speed signal transmission.
Strong anti-interference performance in harsh factory environments.
Supports rich programming functions for complex bending tasks.

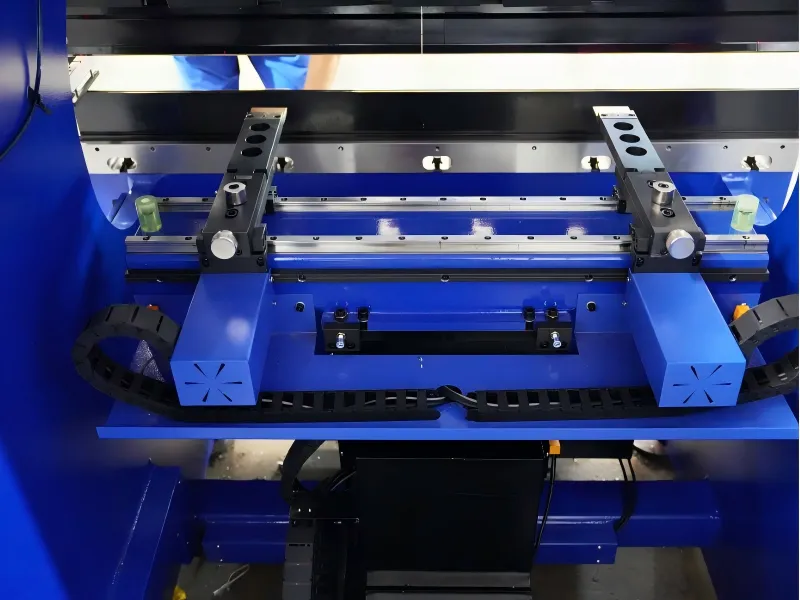

Servo motors drive ball screws on X-axis, R-axis, Z-axis for precise positioning in the rear material stop system.
Utilizes dual linear guide structure for high-precision positioning and fast speeds, improving positioning accuracy and speed of servo motor drive.
Flexible selection of multiple shaft levels, reliable expansion of system functions, while maintaining precise positioning, to meet various production needs.

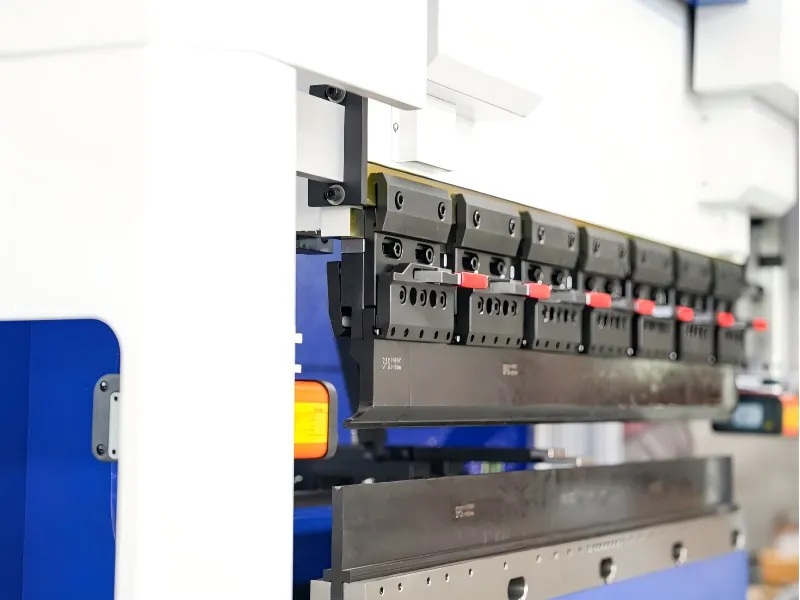

SANXIN double side self-designed quick tool clamping system.
Enable fast mould mounting and replacement within seconds.
Cut downtime and boost workshop production efficiency.

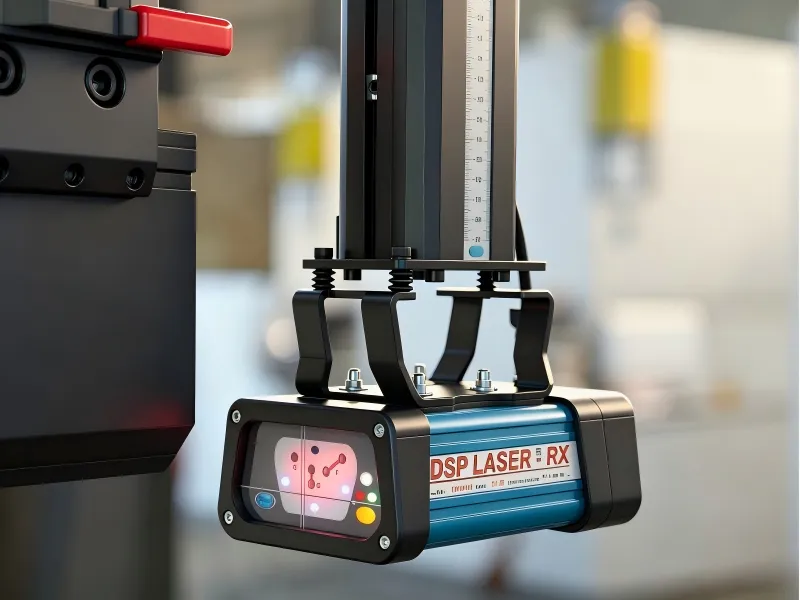

Real-time laser safety barrier for bending dangerous zone.
Instant emergency stop ensures operator safety.
Dust-proof and shockproof, fully adaptive to harsh workshop environment.
High-strength quenched bending moulds with precise machining.
Wear-resistant surface extends service life for heavy workloads.
Customizable sizes to meet diversified sheet bending requirements.
Non-Hydraulic system, Eco-Friendly & Clean Operation. No hydraulic oil required, eliminating leaks, pollution, and the need for regular fluid changes. Compliant with strict environmental standards, ideal for clean-room and precision manufacturing environments.
High Energy Efficiency & Low Operating Costs. Direct servo motors drive reduces energy consumption by up to 50% compared to hydraulic equivalents, with lower maintenance and utility costs for long-term savings.
High bending precision & repeatability. High-resolution servo control delivers consistent ±0.02mm positioning accuracy across the full stroke, ensuring uniform bend angles and dimensional stability even for high-volume production runs.
Faster Cycle Speeds & Higher Productivity. Responsive servo motors enable rapid approach, bending, and retraction, cutting cycle times by 30–40% compared to hydraulic press brakes, significantly boosting throughput.
Low Maintenance & Long Service Life. Less moving parts and no hydraulic system to maintain mean minimal wear, reduced downtime, and lower long-term maintenance expenses.
