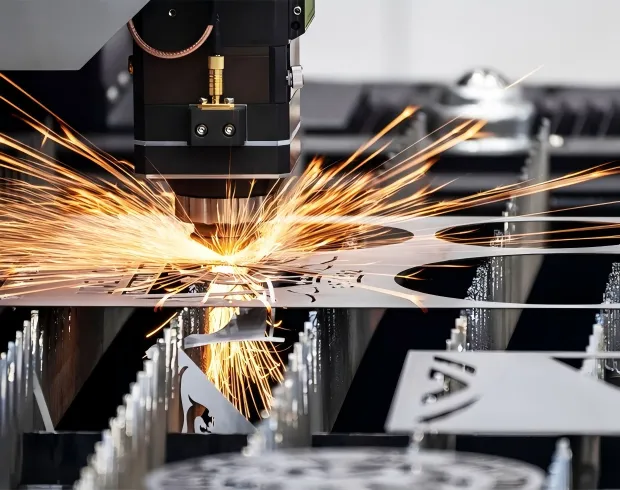

Fiber laser cutting technology has revolutionized the sheet metal processing industry, offering significant advantages over traditional cutting methods like plasma cutting, waterjet cutting, and mechanical shearing. For modern fabrication shops, investing in a fiber laser cutting machine can dramatically improve both productivity and overall profitability.
The key advantages include exceptional cutting speed—up to 10 times faster than traditional methods for thin sheets—along with superior cut quality that requires no secondary finishing operations. Fiber lasers produce clean, smooth edges with minimal heat-affected zones, reducing material waste and eliminating the need for time-consuming deburring processes.

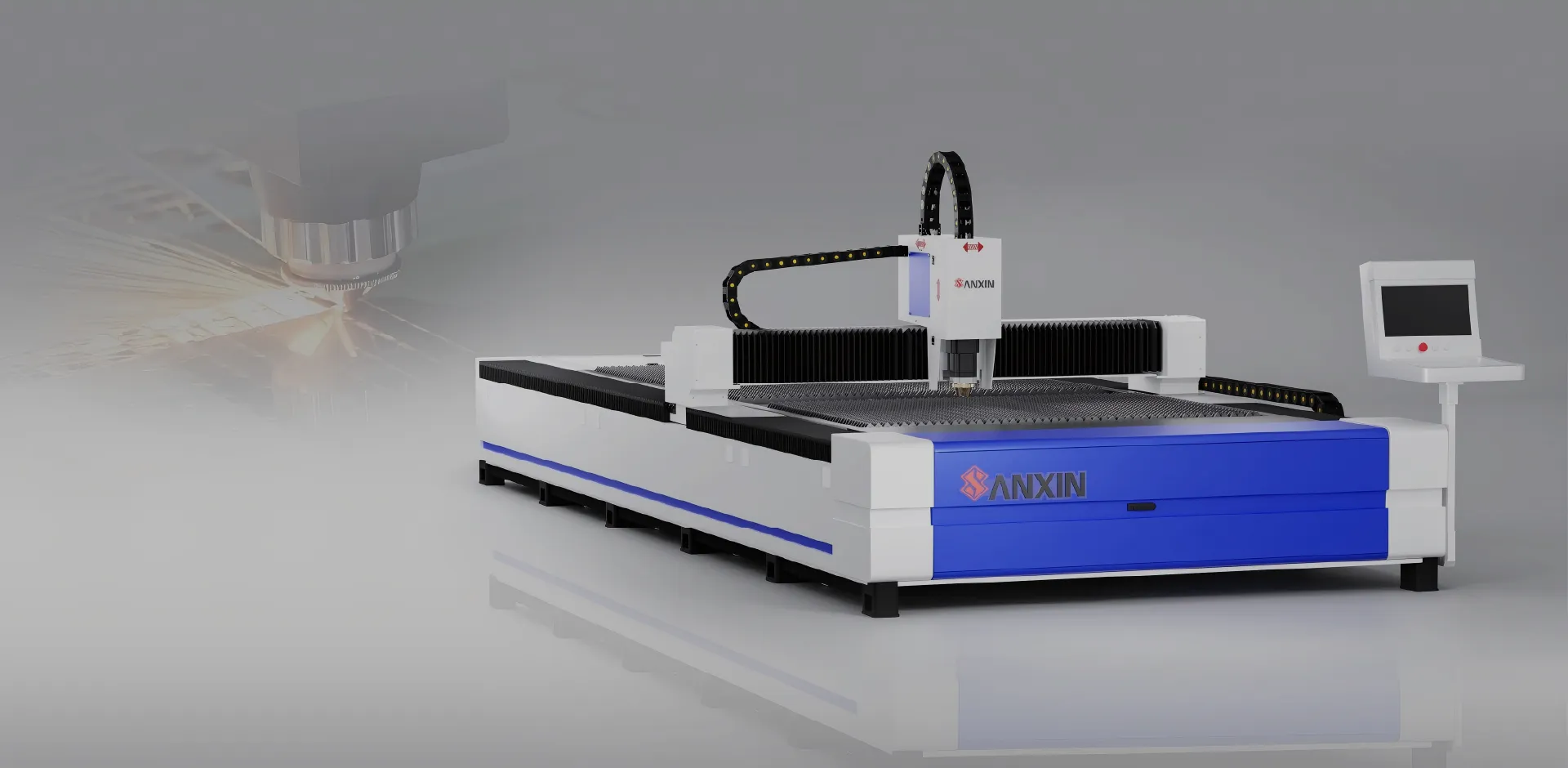

Additional benefits include high precision (±0.1mm positioning accuracy), low operating costs, and the ability to cut a wide range of metals including stainless steel, carbon steel, aluminum, copper, and brass. Sanxin's fiber laser cutting machines are available in single-table, dual-table, and plate-tube integrated configurations, featuring high-power Raycus/IPG laser sources, automatic nesting software, remote diagnostics, and comprehensive global after-sales support to maximize your production efficiency and return on investment.
Fiber laser cutting is significantly faster—up to 10 times faster than plasma cutting for thin sheets, and 3-5 times faster than waterjet cutting. For example, cutting 1mm mild steel can reach speeds of 30-40m/min. Actual speed depends on material type, thickness, and laser power.
Fiber laser cutters have relatively low maintenance needs. Daily tasks include cleaning the lens and nozzle, checking assist gas pressure. Weekly tasks include cleaning the guide rails and checking belt tension. Monthly tasks include inspecting optical path alignment and lubricating moving parts. We provide a detailed maintenance schedule and remote support for all customers.
Fiber lasers excel at cutting reflective metals including stainless steel, carbon steel, aluminum, copper, and brass. They can also cut some non-metals, but are primarily designed for metal processing. Cutting capacity varies by laser power—1000W cuts up to 6mm mild steel, 3000W cuts up to 12mm, 6000W cuts up to 20mm.
Single-table machines have one cutting bed, simpler and more affordable for low to medium production. Dual-table machines have two interchangeable tables—while one table is cutting, you can load/unload parts on the other table, reducing downtime by 30-50% and significantly increasing throughput for high-volume production.
Operating costs include electricity, consumables (nozzles, lenses, assist gas), and maintenance. For a 3000W machine, typical electricity cost is about $2-3 per hour. Consumables average $0.5-1 per hour. Overall, fiber lasers have much lower operating costs than CO2 lasers and are comparable to high-end plasma cutters, but with much better quality.
