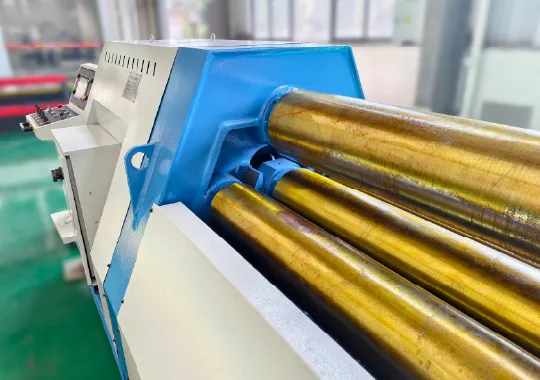

Hydraulic symmetric 3-roller machine achieves full pre-bending without extra fixtures, produces seamless round metal vessels efficiently.

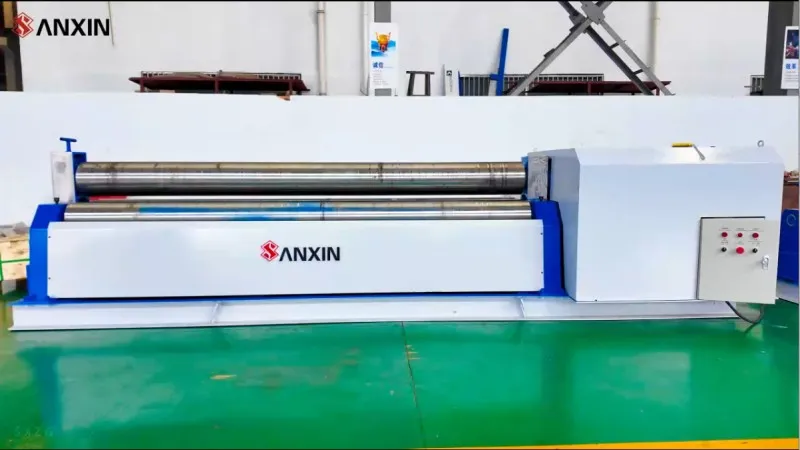

Watch video below to learn more details.
| Model/Unit | Pressure of top roller (Tons) | Maximum Plate Thickness (Mm) | Diameter of up roller (Mm) | Diameter of down rollers (Mm) | Center distance (Mm) | Motor (Kw) | ||||
| End Bending | Center | Width | Drive | Hydraulic pressure | Move | |||||
| W11S-4×2500 | 25 | 3 | 4 | 2500 | 200 | 125 | 160 | 4 | 2.2 | 1.1 |
| W11S-6×2500 | 30 | 5 | 6 | 2500 | 210 | 125 | 160 | 4 | 2.2 | 1.1 |
| W11S-6×3200 | 37 | 5 | 6 | 3200 | 220 | 135 | 180 | 5.5 | 2.2 | 1.1 |
| W11S-6×4000 | 55 | 4 | 6 | 4000 | 260 | 160 | 245 | 7.5 | 4 | 1.5 |
| W11S-6×5000 | 75 | 5 | 6 | 5000 | 320 | 175 | 270 | 15 | 5.5 | 2.2 |
| W11S-6×6000 | 75 | 4 | 6 | 6000 | 340 | 175 | 270 | 15 | 5.5 | 2.2 |
| W11S-8×2000 | 37 | 6 | 8 | 2000 | 210 | 135 | 180 | 4 | 2.2 | 1.1 |
| W11S-8×2500 | 37 | 6 | 8 | 2500 | 235 | 135 | 180 | 5.5 | 2.2 | 1.1 |
| W11S-8×3200 | 45 | 6 | 8 | 3200 | 240 | 145 | 200 | 5.5 | 2.2 | 1.1 |
| W11S-8×4000 | 75 | 6 | 8 | 4000 | 290 | 175 | 270 | 11 | 5.5 | 2.2 |
| W11S-8×5000 | 100 | 6 | 8 | 5000 | 340 | 175 | 270 | 15 | 5.5 | 2.2 |
| W11S-10×2000 | 37 | 8 | 10 | 2000 | 235 | 135 | 180 | 5.5 | 2.2 | 1.1 |
| W11S-10×2500 | 55 | 8 | 10 | 2500 | 250 | 150 | 245 | 7.5 | 4 | 1.5 |
| W11S-10×3500 | 75 | 8 | 10 | 3500 | 290 | 165 | 270 | 11 | 5.5 | 2.2 |
| W11S-10×4000 | 100 | 8 | 10 | 4000 | 340 | 180 | 300 | 15 | 7.5 | 4 |
| W11S-10×6000 | 100 | 8 | 10 | 6000 | 420 | 180 | 300 | 18.5 | 7.5 | 4 |
| W11S-12×2000 | 65 | 10 | 12 | 2000 | 250 | 120 | 245 | 7.5 | 4 | 1.5 |
| W11S-12×2500 | 75 | 10 | 12 | 2500 | 270 | 150 | 245 | 7.5 | 4 | 1.5 |
| W11S-12×3200 | 75 | 10 | 12 | 3200 | 290 | 165 | 270 | 11 | 5.5 | 2.2 |
| W11S-12×4000 | 130 | 10 | 12 | 4000 | 380 | 200 | 330 | 15 | 7.5 | 2.2 |
| W11S-16×2000 | 75 | 12 | 16 | 2000 | 270 | 150 | 245 | 7.5 | 4 | 1.5 |
| W11S-16×2500 | 100 | 12 | 16 | 2500 | 300 | 165 | 270 | 15 | 5.5 | 1.5 |
| W11S-16×3200 | 130 | 12 | 16 | 3200 | 350 | 180 | 300 | 15 | 5.5 | 2.2 |
| W11S-16×4000 | 130 | 12 | 16 | 4000 | 400 | 200 | 330 | 18.5 | 7.5 | 2.2 |
| W11S-20×2000 | 100 | 16 | 20 | 2000 | 300 | 165 | 270 | 15 | 5.5 | 1.5 |
| W11S-20×2500 | 130 | 16 | 20 | 2500 | 340 | 180 | 300 | 15 | 5.5 | 2.2 |
| W11S-20×3200 | 160 | 16 | 20 | 3200 | 380 | 200 | 330 | 18.5 | 7.5 | 2.2 |
| W11S-20×4000 | 230 | 16 | 20 | 4000 | 440 | 235 | 380 | 30 | 11 | 4 |
| W11S-20×6000 | 270 | 16 | 20 | 6000 | 540 | 270 | 420 | 37 | 15 | 5.5 |
| W11S-25×2000 | 160 | 20 | 25 | 2000 | 350 | 200 | 330 | 18.5 | 7.5 | 2.2 |
| W11S-25×2500 | 190 | 20 | 25 | 2500 | 380 | 220 | 360 | 22 | 7.5 | 4 |
| W11S-25×3200 | 230 | 20 | 25 | 3200 | 420 | 240 | 380 | 30 | 11 | 4 |
| W11S-25×4000 | 270 | 20 | 25 | 4000 | 490 | 250 | 400 | 30 | 11 | 4 |
| W11S-30×2000 | 230 | 25 | 30 | 2000 | 380 | 235 | 380 | 22 | 7.5 | 4 |
| W11S-30×2500 | 230 | 25 | 30 | 2500 | 410 | 240 | 380 | 30 | 11 | 4 |
| W11S-30×3000 | 270 | 25 | 30 | 3000 | 450 | 250 | 400 | 30 | 11 | 4 |
| W11S-30×4000 | 380 | 25 | 30 | 4000 | 550 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-35×2000 | 270 | 30 | 35 | 2000 | 410 | 250 | 400 | 30 | 11 | 4 |
| W11S-35×2500 | 320 | 30 | 35 | 2500 | 460 | 260 | 420 | 37 | 15 | 5.5 |
| W11S-35×3000 | 380 | 30 | 35 | 3000 | 510 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-35×4000 | 480 | 30 | 35 | 4000 | 600 | 300 | 520 | 55 | 22 | 7.5 |
| W11S-40×2500 | 380 | 35 | 40 | 2500 | 500 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-40×3200 | 430 | 35 | 40 | 3000 | 540 | 290 | 500 | 55 | 22 | 7.5 |

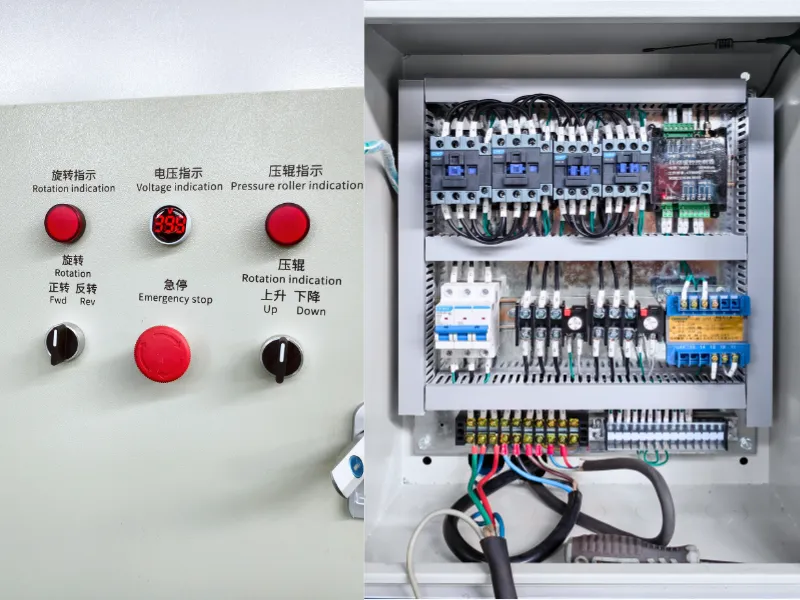

Complete integrated electrical control system.
Equipped with emergency-stop and status indicator lights.
Stable circuit ensures safe and intuitive machine operation.

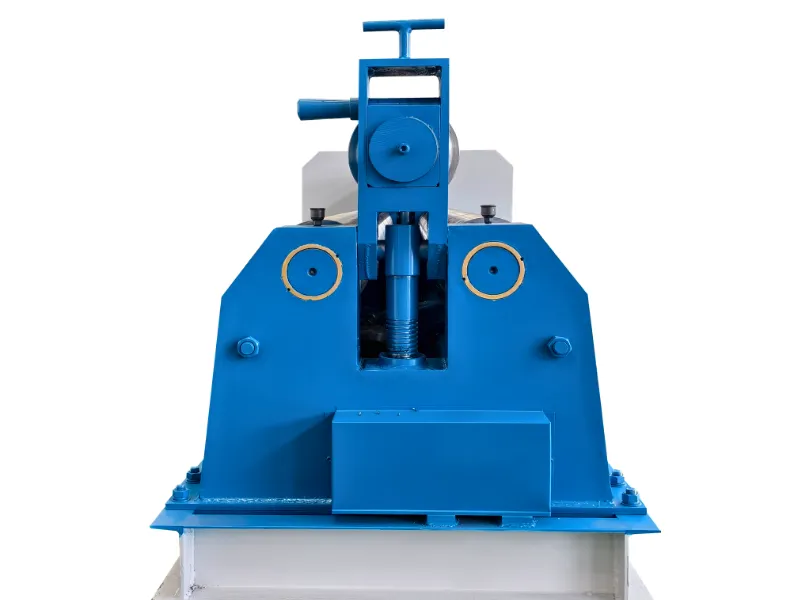

High-strength welded steel main frame structure.
Absorb heavy load stress without long-term deformation.
Offer solid foundation for continuous plate rolling work.

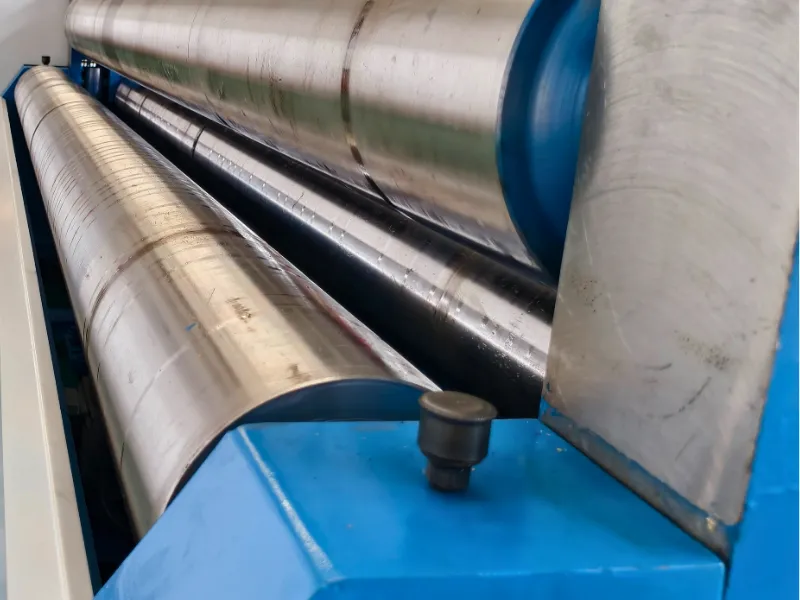

High-hardness forged and polished rolling rollers.
Deliver smooth surface finish for formed workpieces.
Maintain consistent roundness in mass-production rolling.

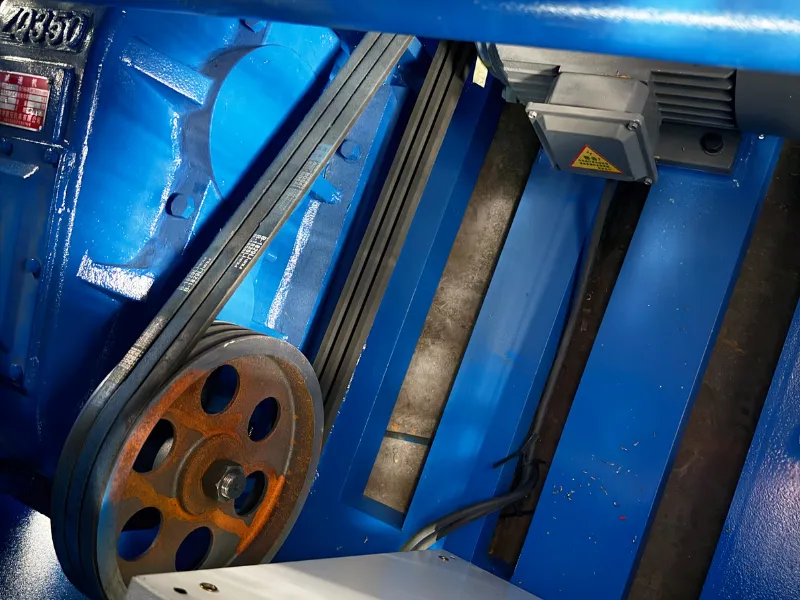

Reliable motor-belt-reducer power transmission unit.
Transfer ample torque for thick-plate rolling tasks.
Hydraulic drive provides powerful rolling force for thick plate processing.
Adjustable roller positions accommodate different diameter requirements.
Handles plates from 2mm up to 60mm thickness depending on model.
Widely used in shipbuilding, pressure vessels and steel structure industries.
