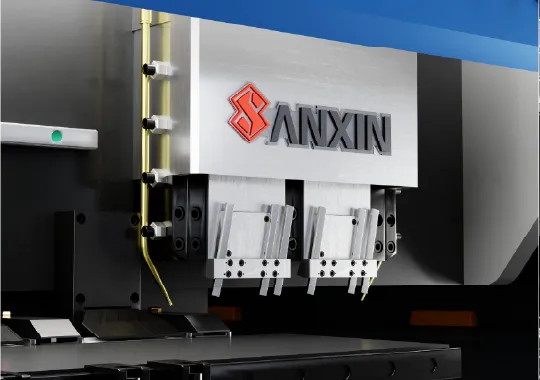

Compact vertical CNC V grooving equipment, saves floor space while creating smooth uniform grooves for thin decorative metal sheets.

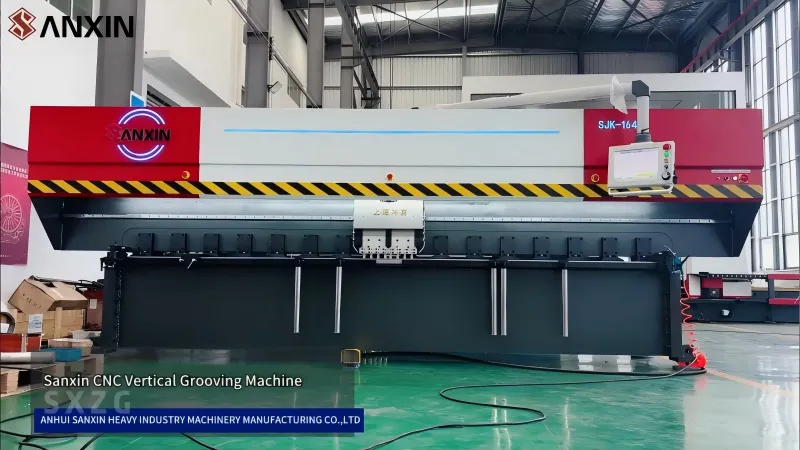

Watch video below to learn more details.
| Modle | SJK 1250*3200 | SJK 1500*3200 | SJK 1600*3200 | SJK 1600*4500 | SJK 1600*6200 |
| Max grooving width mm | 20-1250 | 1500 | 1600 | 1600 | 1600 |
| Max grooving length mm | 60-3200 | 3200 | 3200 | 4500 | 6200 |
| Grooving hight (The flatness of stainless steel sheet is less than 3mm) mm | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Min grooving thickness mm | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Maximum travel of the tool rest mm | 20 | 20 | 20 | 20 | 20 |
| Max cutting speed（X axis） m/min | 100 | 100 | 100 | 100 | 100 |
| Max cutting speed（Y axis） m/min | 30 | 30 | 30 | 30 | 30 |
| Movement speed （Y axis） m/min | 13 | 13 | 13 | 20 | 20 |
| Maximum movement speed ( Z₁&Z₂ -axis) m/min | 10 | 10 | 10 | 10 | 10 |
| Positioning accuracy mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Total motor power kw | 11 | 11 | 11 | 13.5 | 11 |
| Min distance between V-groove and edge mm | 8 | 8 | 8 | 8 | 8 |
| Hydraulic system working pressure Mpa | 8 | 8 | 8 | 8 | 8 |
| Machine size (L*W*H) mm | 5300*3500*2200 | 4300*3500*2200 | 5300*3500*2200 | 6100*2800*2200 | 7400*3100*2200 |

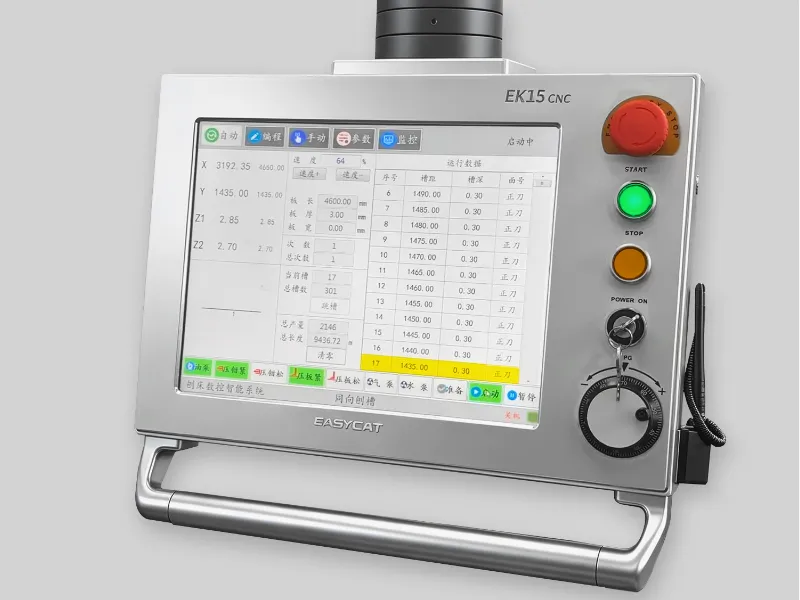

Intuitive 10-inch touch screen operation.
Supports automatic programming and real-time data monitoring.
Simple operation, reduces worker training costs.

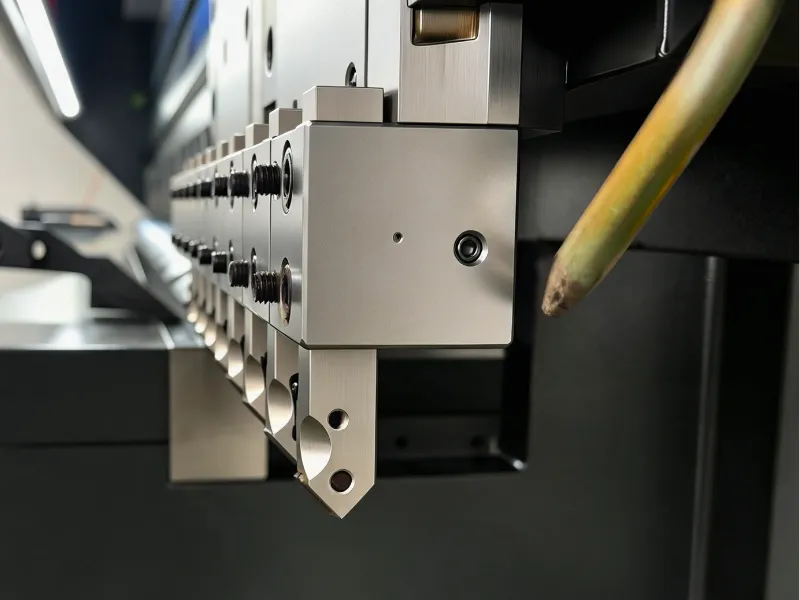

High-hardness integrated tool holder structure.
Ensures consistent groove depth and straightness.
Quick replacement for different processing demands.

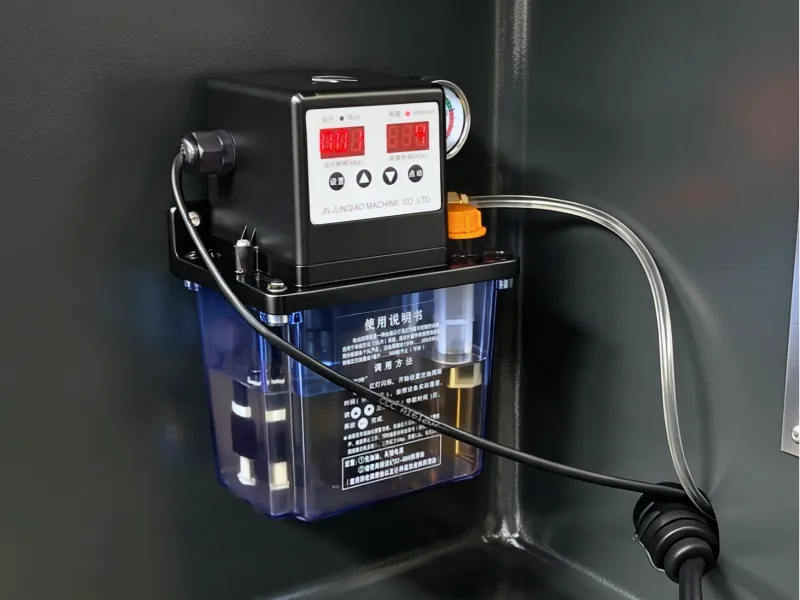

Timed quantitative automatic oil supply.
Reduces friction and extends rail service life.
Effectively lower daily machine maintenance work

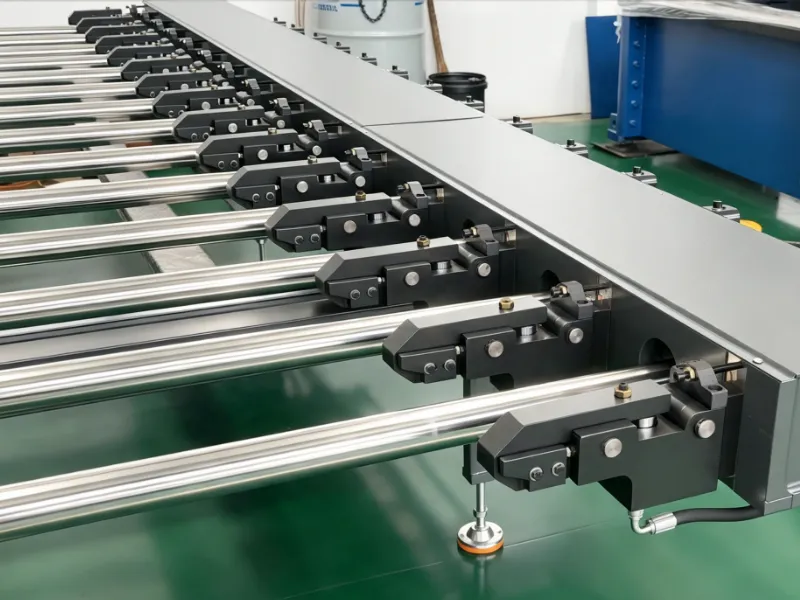

Stable support for long metal sheets.
Avoid plate sagging during grooving processing.
Guarantee stable machining precision.

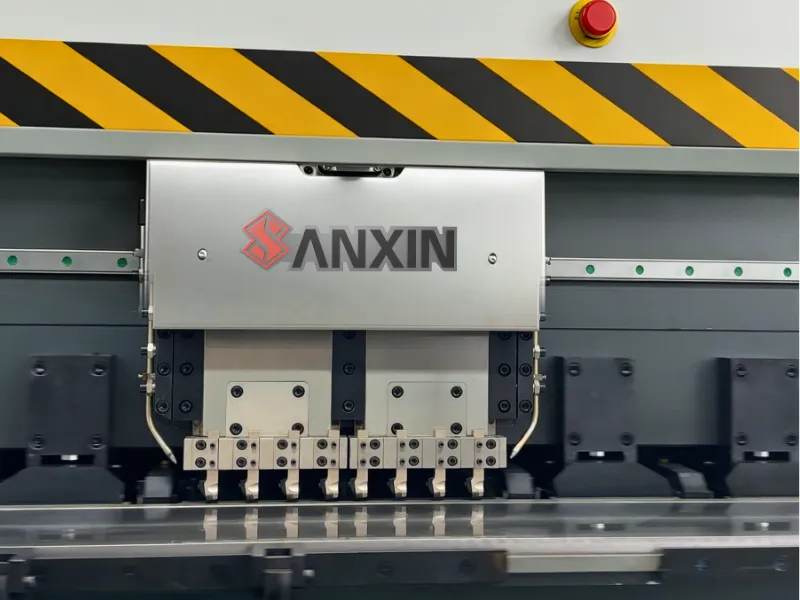

High rigidity integral sliding module.
Stable operation under long continuous workload.
Minimize vibration to improve finished surface quality.

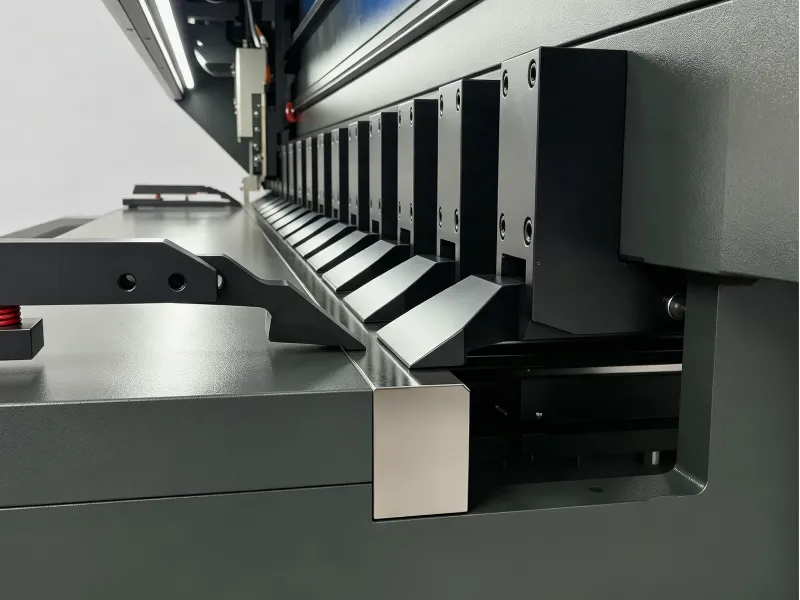

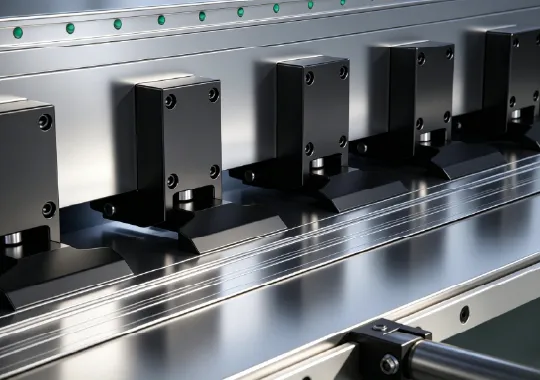

Precision ground work surface with high flatness.
Firmly fixes sheet metal to prevent shifting.
Adapt to stainless steel, aluminum and other plates.

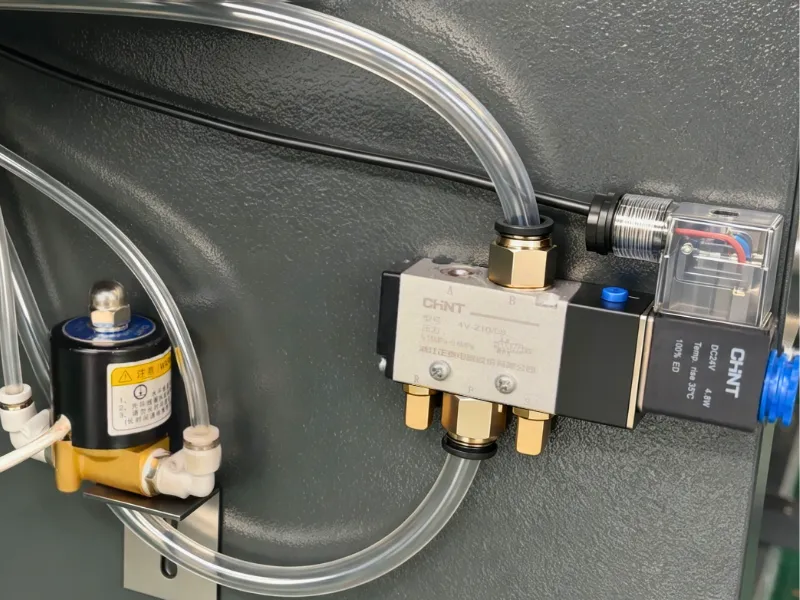

Famous brand pneumatic control components.
Fast response and stable clamping action.
Durable, reduce frequent breakdown troubles.
Vertical processing delivers exceptional surface finish with zero scratches.
±0.05mm depth accuracy ensures consistent bend quality across production.
Creates ultra-sharp 0.2mm R corners for premium stainless steel products.
Perfect for high-end kitchenware, elevator panels and decorative applications.
