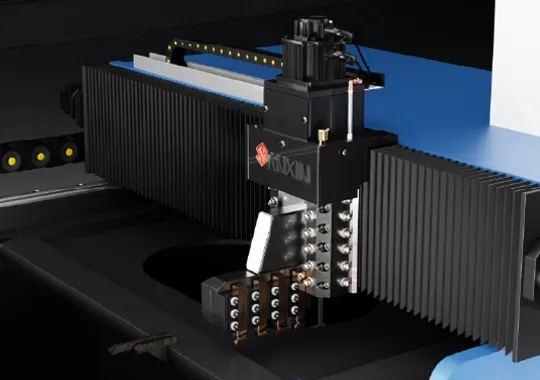

Heavy-duty CNC metal V groover makes precise pre-bending slots on stainless steel for decorative & architectural metal panel works.

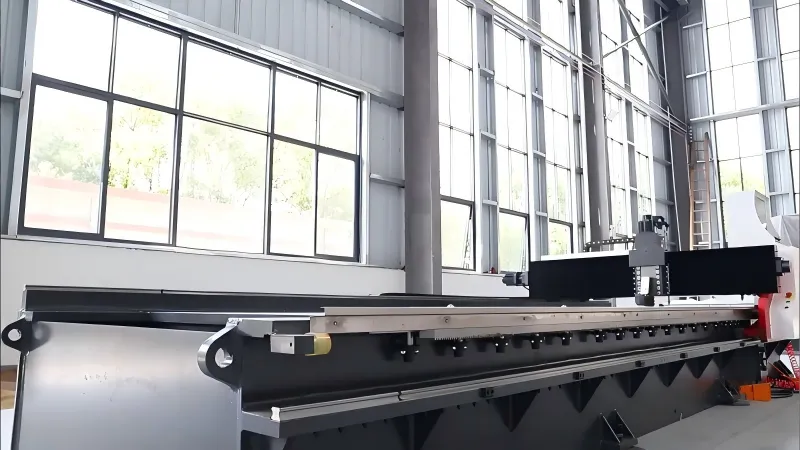

Watch video below to learn more details.
| Modle | PGNK 1250*2500 | PGNK 1250*3200 | PGNK 1250*4000 | PGNK 1500*4500 | PGNK 1500*6000 |
| Max grooving width mm | 1250 | 1250 | 1250 | 1500 | 1500 |
| Max grooving length mm | 2500 | 3200 | 4000 | 4500 | 6000 |
| Max grooving hight (The flatness of stainless steel sheet is less than 3mm) mm | 4 | 4 | 4 | 4 | 4 |
| Min grooving thickness mm | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Cross beam (X axis) repeat positioning accurac mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Max cutting speed（X axis） m/min | 40 | 40 | 40 | 40 | 60 |
| Return speed （X axis） m/min | 40 | 40 | 40 | 40 | 60 |
| Movement speed （Y axis） m/min | 13 | 13 | 13 | 20 | 20 |
| Movement speed （Z axis） m/min | 12 | 12 | 12 | 20 | 20 |
| Positioning accuracy mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Power of main servo motor kw | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Min distance between V-groove and edge mm | 8 | 8 | 8 | 8 | 8 |
| Machine size (L*W*H) mm | 4700*2500*1500 | 5200*2500*1500 | 6200*2500*1500 | 6700*2650*1500 | 8200*2600*1550 |

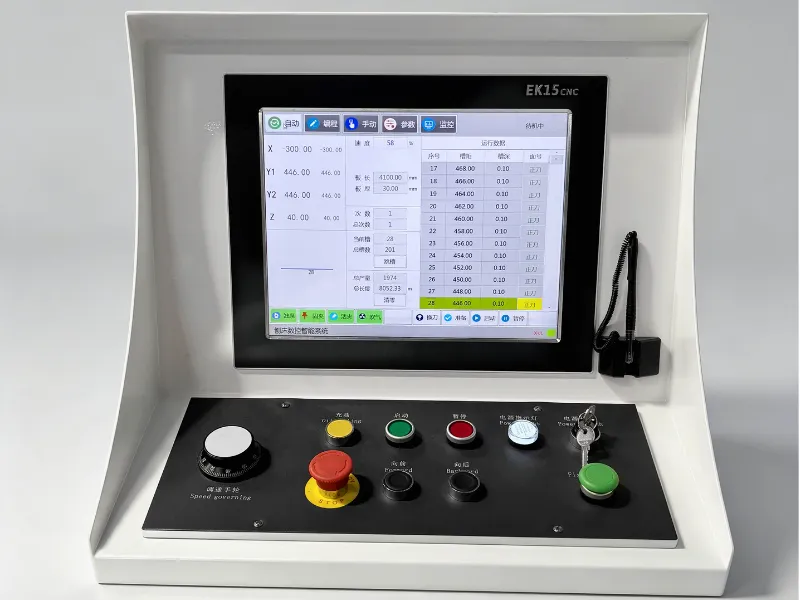

User-friendly integrated operation console.
Supports offline programming and real-time parameter monitoring.
Simplified operation lowers operator learning difficulty.

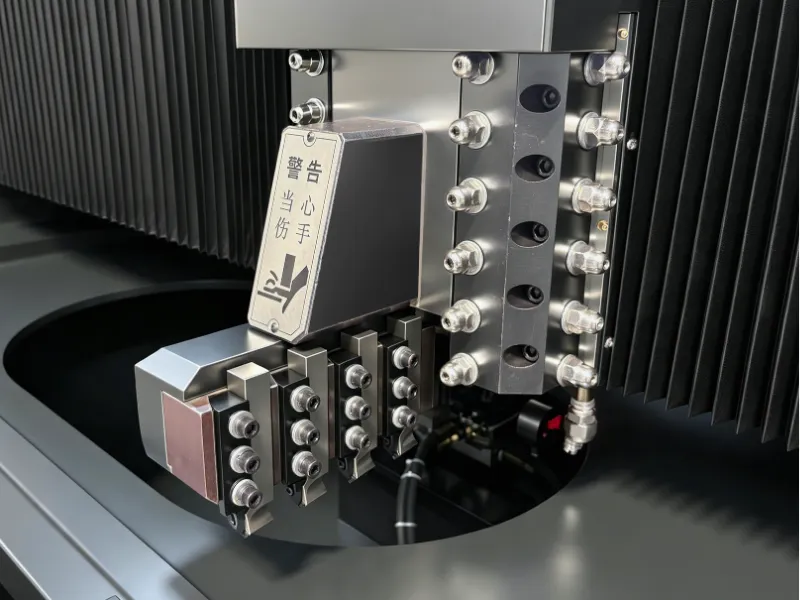

Modular multi-cutter tool assembly design.
Achieves stable and consistent grooving depth.
Quick tool replacement for diversified machining tasks.

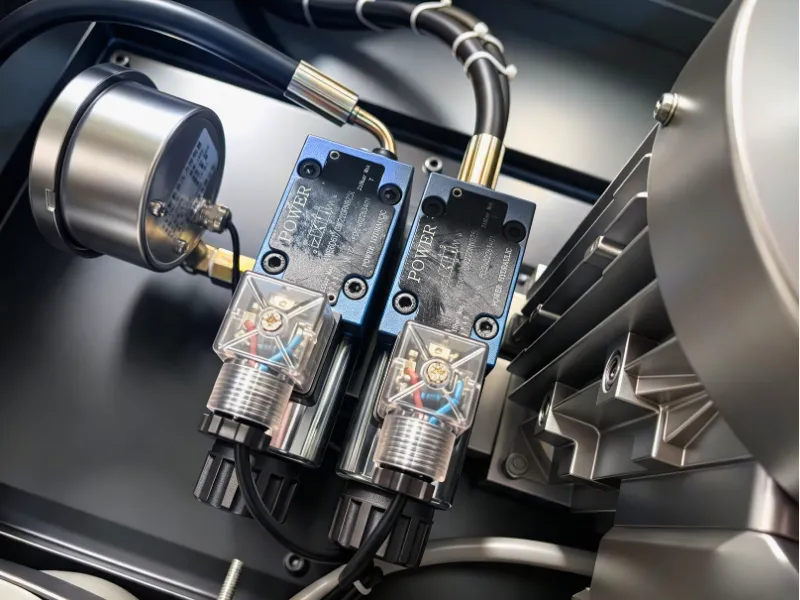

Precise hydraulic control for stable clamping action.
Fast response and reliable continuous operation.
Reduce hydraulic failure rates during long-time production.

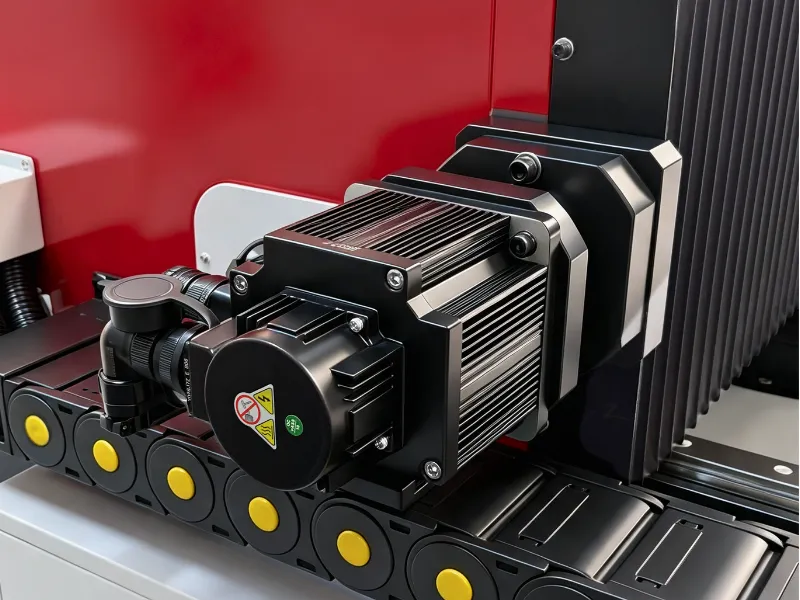

High-torque heavy-duty servo motor.
Deliver powerful driving force with low vibration.
Guarantee accurate feeding and high processing repeatability.

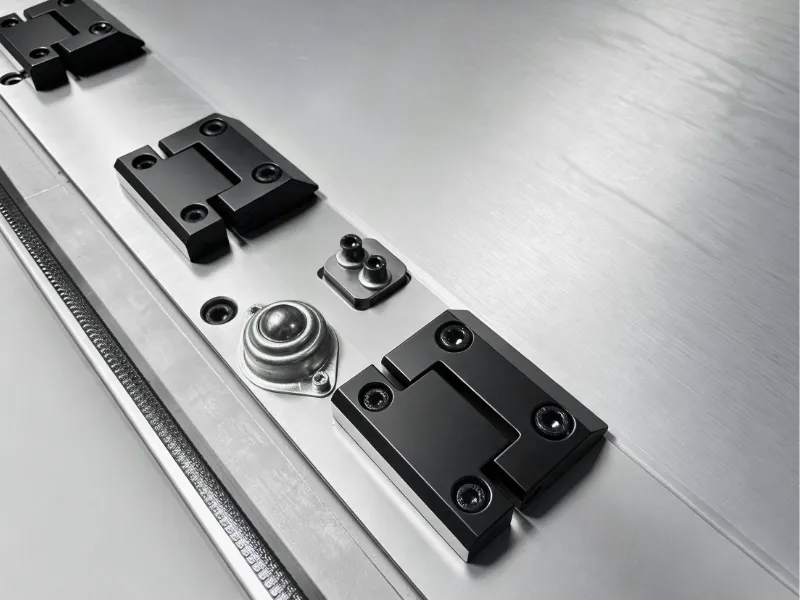

High rigidity heavy-load linear guideway.
Realize smooth and low-noise sliding movement.
Maintain long-term machining precision under heavy load.
Gantry-type structure supports large and heavy sheet processing.
Horizontal worktable design ensures stable grooving across full length.
Handles thicker materials compared to vertical grooving machines.
Ideal for heavy-duty architectural and structural steel applications.
