Swing arm hydraulic shear features easy operation & low maintenance, widely used for light sheet cutting in small metal processing factories.

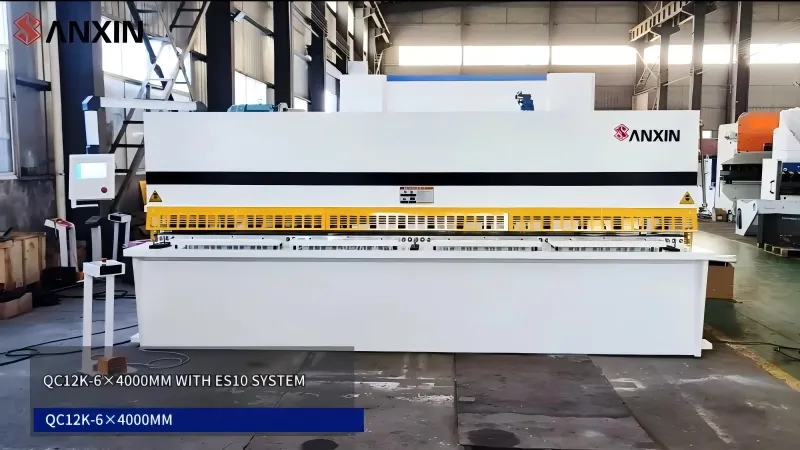

Watch video below to learn more details.
| Type/Unit | Cutting thickness | Cutting length | Cutting angle | Throat depth | Back-Gauge range | Travel times | Motor power | Dimension (L×W×H) |
| (mm) | (mm) | (°) | (mm) | (mm) | (cycle/min) | (kw) | (mm) | |
| 4×2500 | 4 | 2500 | 1.5 | 100 | 20-600 | 18 | 5.5 | 3200×1600×1600 |
| 4×3200 | 4 | 3200 | 1.5 | 100 | 20-600 | 19 | 5.5 | 3900×1600×1600 |
| 4×4000 | 4 | 4000 | 1.5 | 100 | 20-600 | 14 | 7.5 | 4700×1600×1600 |
| 4×5000 | 4 | 5000 | 1.5 | 100 | 20-600 | 12 | 11 | 5800×1750×1850 |
| 4×6000 | 4 | 6000 | 1.5 | 100 | 20-600 | 8 | 11 | 6800×1750×1850 |
| 6×2500 | 6 | 2500 | 1.5 | 100 | 20-600 | 17 | 7.5 | 3200×1650×1800 |
| 6×3200 | 6 | 3200 | 1.5 | 100 | 20-600 | 15 | 7.5 | 3900×1650×1800 |
| 6×4000 | 6 | 4000 | 1.5 | 100 | 20-600 | 12 | 7.5 | 4700×1650×1800 |
| 6×5000 | 6 | 5000 | 1.5 | 100 | 20-600 | 10 | 11 | 5800×1800×1950 |
| 6×6000 | 6 | 6000 | 2 | 100 | 20-600 | 8 | 11 | 6800×1800×1950 |
| 8×2500 | 8 | 2500 | 2 | 100 | 20-600 | 16 | 7.5 | 3200×1700×1850 |
| 8×3200 | 8 | 3200 | 2 | 100 | 20-600 | 14 | 7.5 | 3900×1700×1850 |
| 8×4000 | 8 | 4000 | 2 | 100 | 20-600 | 11 | 7.5 | 4700×1700×1850 |
| 8×5000 | 8 | 5000 | 2 | 100 | 20-600 | 10 | 11 | 5800×1900×2100 |
| 8×6000 | 8 | 6000 | 2 | 120 | 20-600 | 8 | 11 | 6800×1900×2200 |
| 10×2500 | 10 | 2500 | 2 | 120 | 20-600 | 12 | 11 | 3200×1850×1900 |
| 10×3200 | 10 | 3200 | 2 | 120 | 20-600 | 10 | 11 | 3900×1850×1900 |
| 10×4000 | 10 | 4000 | 2 | 120 | 20-600 | 8 | 15 | 4700×1850×1900 |
| 10×5000 | 10 | 5000 | 2 | 120 | 20-600 | 7 | 15 | 5800×2000×2150 |
| 10×6000 | 10 | 6000 | 2 | 120 | 20-600 | 6 | 18.5 | 6800×2000×2500 |
| 12×2500 | 12 | 2500 | 2.5 | 120 | 20-600 | 11 | 15 | 3200×2050×2150 |
| 12×3200 | 12 | 3200 | 2.5 | 120 | 20-600 | 10 | 18.5 | 3900×2050×2150 |
| 12×4000 | 12 | 4000 | 2.5 | 120 | 20-600 | 8 | 18.5 | 4700×2050×2150 |
| 12×5000 | 12 | 5000 | 2.5 | 120 | 20-600 | 7 | 22 | 5800×2200×2200 |
| 12×6000 | 12 | 6000 | 2.5 | 120 | 20-600 | 6 | 22 | 6800×2400×2600 |
| 16×2500 | 16 | 2500 | 2.5 | 120 | 20-600 | 10 | 18.5 | 3200×2150×2250 |
| 16×3200 | 16 | 3200 | 2.5 | 120 | 20-600 | 9 | 18.5 | 3900×2150×2250 |
| 16×4000 | 16 | 4000 | 2.5 | 120 | 20-600 | 8 | 22 | 4700×2150×2250 |
| 16×5000 | 16 | 5000 | 2.5 | 120 | 20-600 | 6 | 30 | 5800×2500×2700 |
| 16×6000 | 16 | 6000 | 2.5 | 120 | 20-600 | 6 | 37 | 6800×2500×2700 |
| 20×2500 | 20 | 2500 | 3 | 120 | 20-600 | 8 | 22 | 3200×2250×2350 |
| 20×3200 | 20 | 3200 | 3 | 120 | 20-600 | 7 | 22 | 3900×2250×2350 |
| 20×4000 | 20 | 4000 | 3 | 120 | 20-600 | 6 | 30 | 4700×2350×2350 |
| 20×5000 | 20 | 5000 | 3 | 120 | 20-600 | 5 | 37 | 5800×2600×2700 |
| 20×6000 | 20 | 6000 | 3 | 120 | 20-600 | 4 | 37 | 6800×2600×2900 |
| 25×2500 | 25 | 2500 | 3 | 120 | 20-600 | 6 | 37 | 3200×2300×2500 |
| 25×3200 | 25 | 3200 | 3 | 120 | 20-600 | 5 | 37 | 3900×2300×2500 |
| 25×4000 | 25 | 4000 | 3.5 | 120 | 20-600 | 5 | 37 | 4700×2700×2800 |
| 25×5000 | 25 | 5000 | 3.5 | 120 | 20-600 | 4 | 45 | 5800×2700×2800 |
| 25×6000 | 25 | 6000 | 3.5 | 120 | 20-600 | 4 | 45 | 6800×2700×2900 |

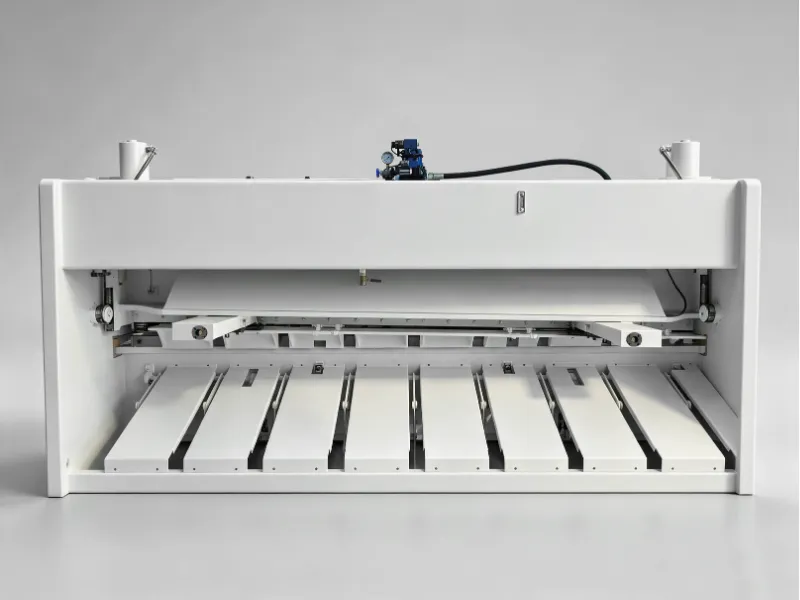

The entire machine features a steel plate welded structure, hydraulic transmission, and accumulator return.
It boasts a user-friendly operation, dependable performance, and an aesthetically pleasing appearance.

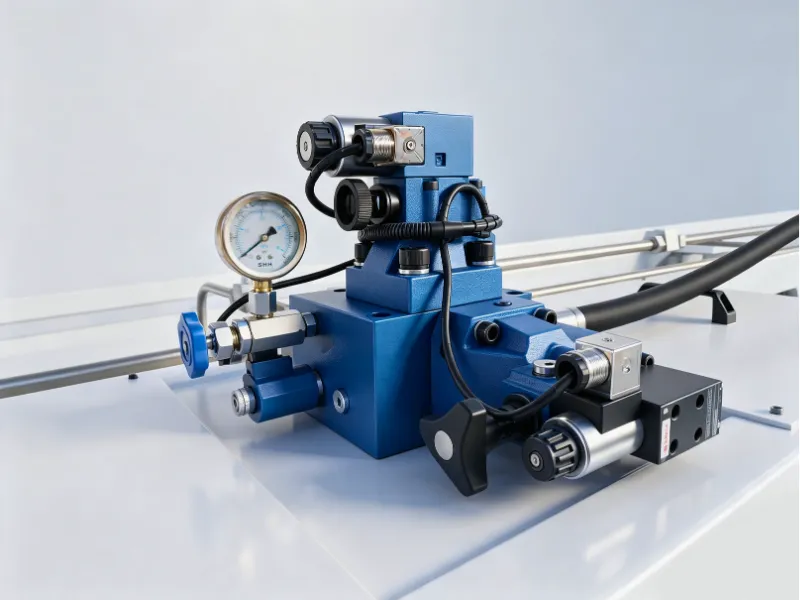

Thanks to our oil pressure overload protection system, oil leakage and valve jamming are rare occurrences on our machine.
We provide real-time oil pressure monitoring to ensure smooth oil circuit operations and stable equipment performance.

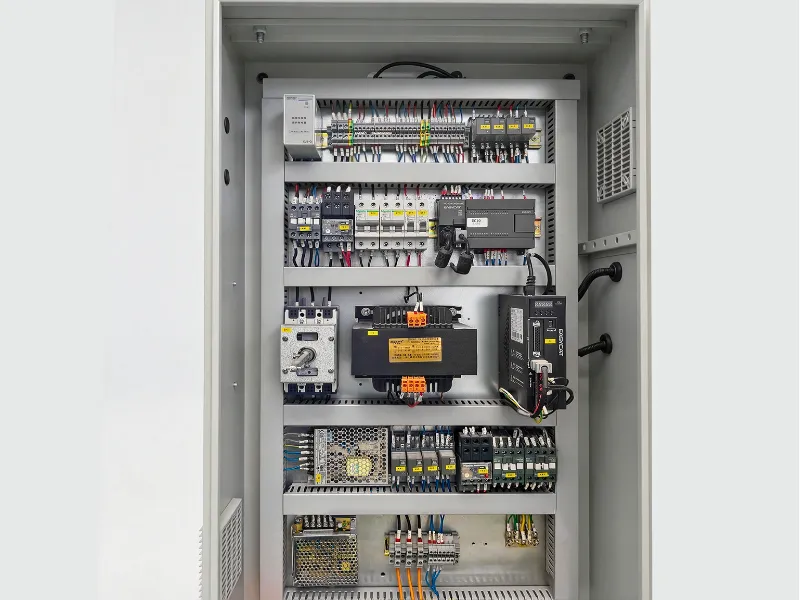

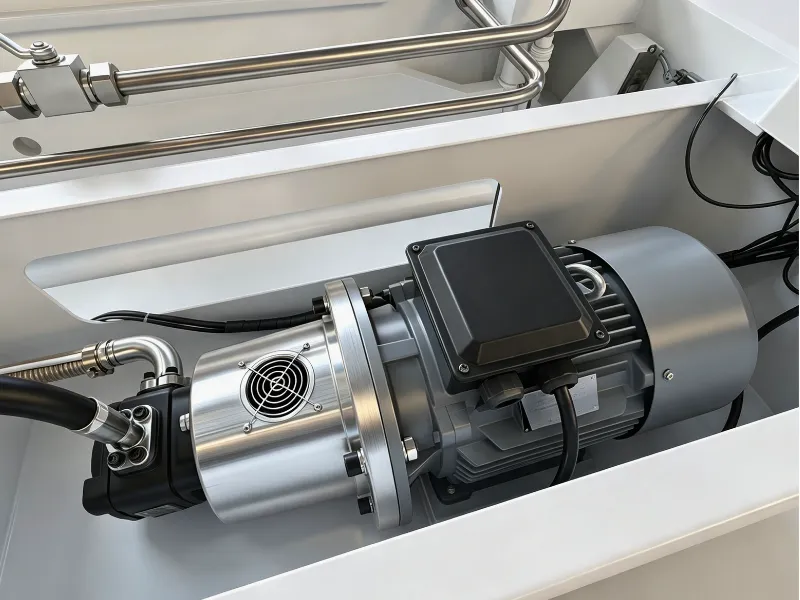

High-efficiency drive motor delivers stable power output.
Low vibration and noise during continuous cutting operations.
Supports customized voltage to match global factory standards.
Neat internal wiring with reliable heat dissipation design.
Branded electrical components reduce unexpected failures.
Easy access for routine inspection and maintenance work.

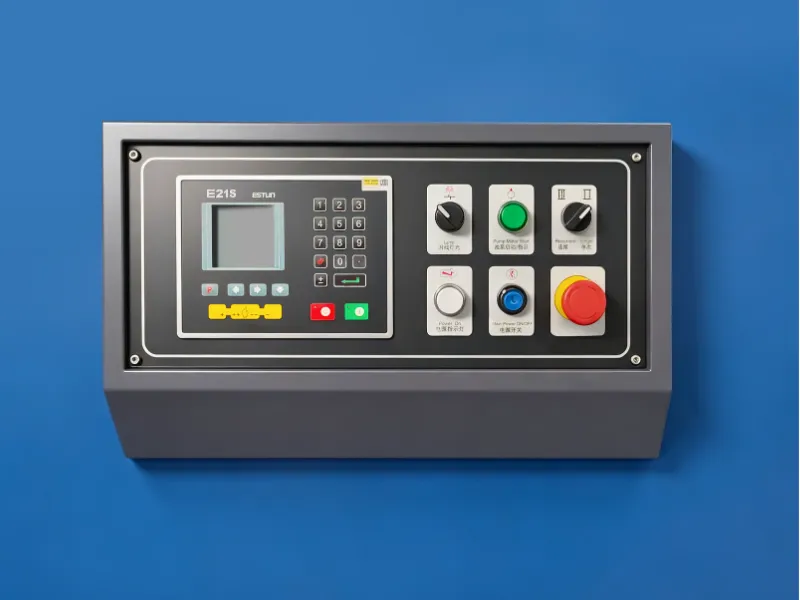

Our plate shearing machine utilizes a specially designed, cost-effective numerical control system.
We offer the option to include the DAC310T system from Delem, a renowned company in the Netherlands.
This system is capable of automatically controlling the cutting angle and blade clearance for optimal performance.

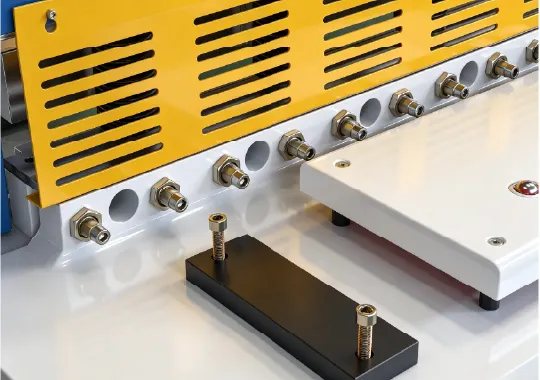

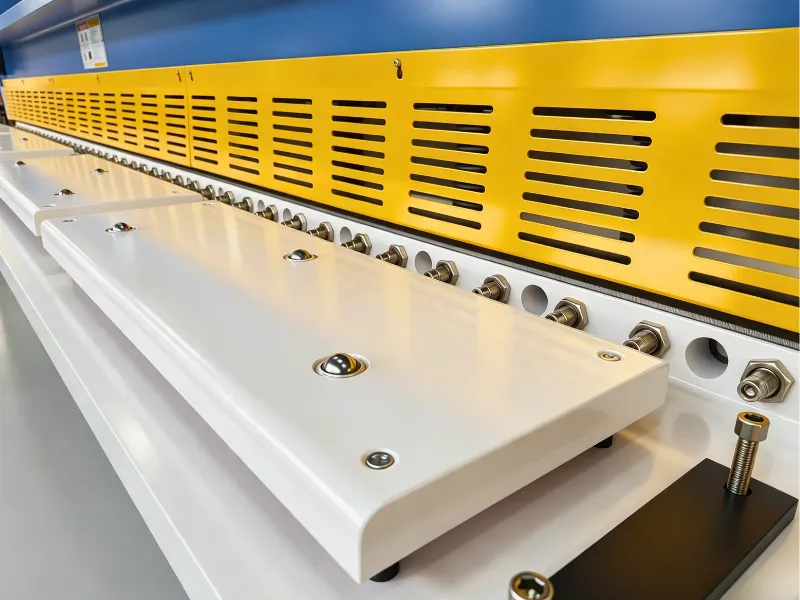

Built-in ball rollers enable smooth sheet feeding.
Prevents scratches on finished metal workpiece surfaces.
Greatly improves handling efficiency for long plates.

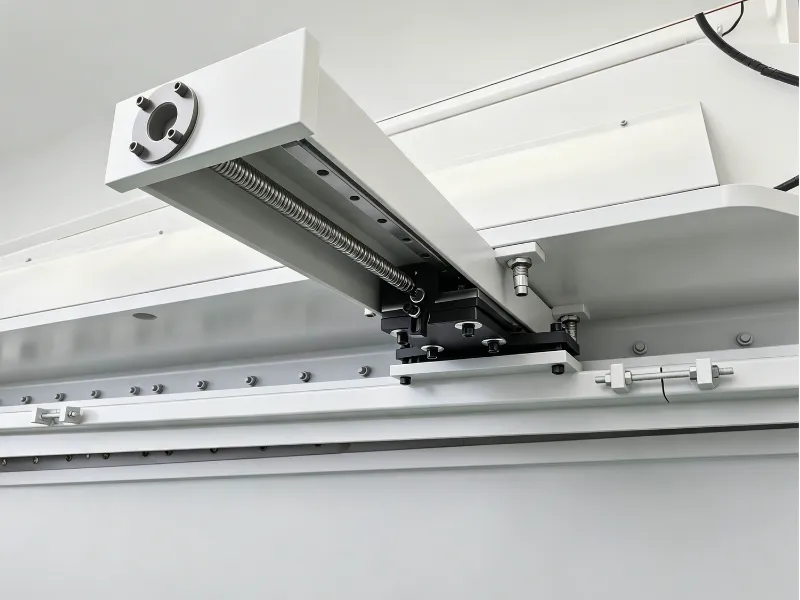

High-precision screw drive ensures accurate positioning.
Stable rigid structure resists deformation under load.
Flexible adjustment fits different sheet dimension demands.

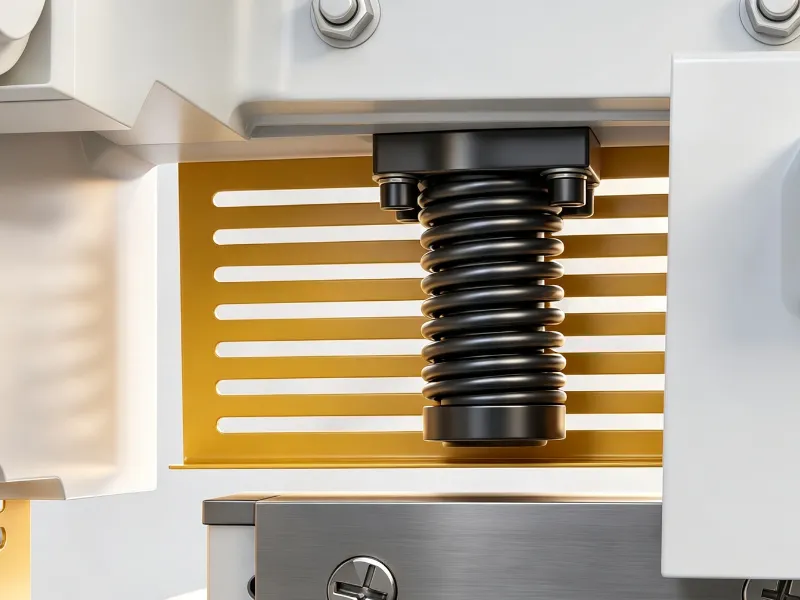

Provides stable rebound force for the tool beam.
Maintains consistent cutting circulation cycle.
Durable structure extends overall machine service life.
Arc-shaped blade motion reduces cutting force and energy consumption.
Fast cutting speed improves production efficiency for general sheet processing.
Simple structure makes maintenance easy and cost-effective.
Compact footprint saves valuable workshop floor space.
