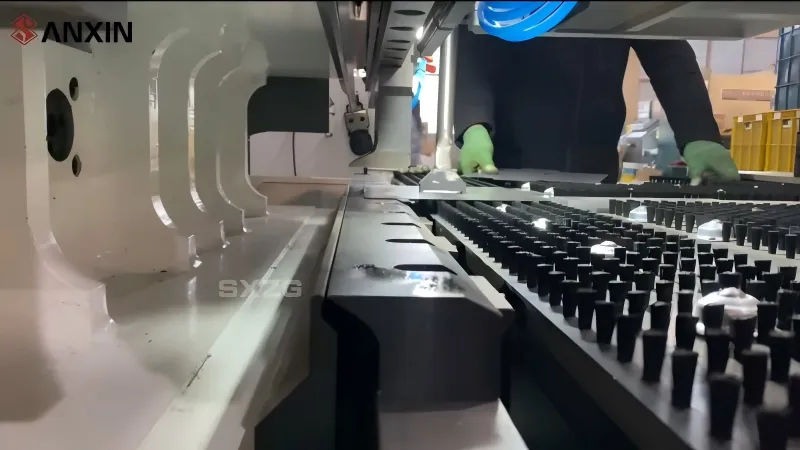

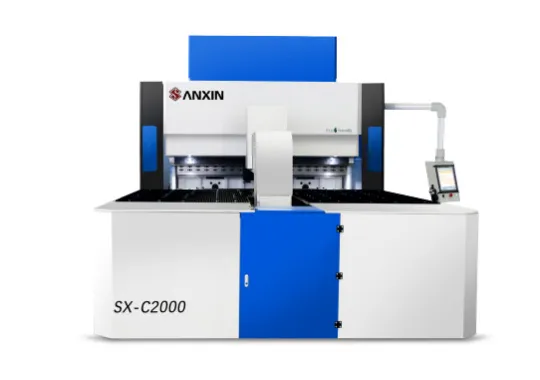

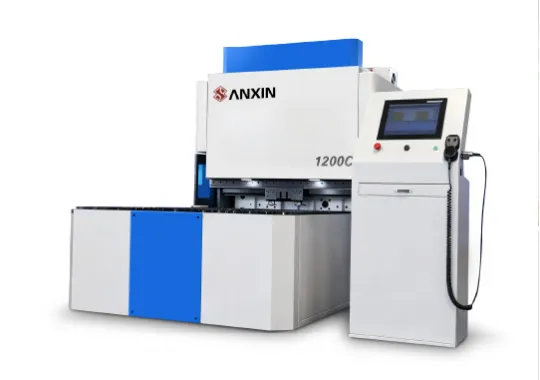

Fully automatic robotic bending cell realizes unmanned sheet forming, integrates loading, bending & unloading for smart digital workshops.
Watch video below to learn more details.
| Type/Unit | Maximum bending length | Maximum bending width | Maximum bending height | Minimum forming dimensions on all four sides | Minimum forming dimension on one side | Bending angle | model | Maximum clamping force | Bending thickness | Minimum bending thickness | Voltage and frequency | ||
| Stainless steel | Aluminum | Sheet metal | |||||||||||
| Mm | Mm | Mm | Mm | Mm | ℃ | T | Mm | Mm | Mm | Mm | V/Hz | ||
| PSE-3000 | 3000 | 1250 | 170 | 200 | 170 | Front and back sides 0-180 | Standard | 115 | 1.2 | 2 | 1.5 | 0.35 | 380/50-60 |
| Heavy | 155 | 1.5 | 3 | 2 | |||||||||
| PSE-2500 | 2500 | 1250 | 170 | 200 | 170 | Front and back sides 0-180 | Standard | 80 | 1.2 | 2 | 1.5 | ||
| Heavy | 115 | 1.5 | 3 | 2 | |||||||||
| PSE-2000 | 2000 | 1250 | 170 | 200 | 170 | Front and back sides 0-180 | Standard | 38 | 1.2 | 2 | 1.5 | ||
| Heavy | 53 | 1.5 | 3 | 2 | |||||||||
| PSE-1400 | 1400 | 1400 | 170 | 200 | 170 | Front and back sides 0-180 | Standard | 28 | 1.2 | 2 | 1.5 | ||
| Heavy | 38 | 1.5 | 3 | 2 | |||||||||
| PSE-1000 | 1000 | 1000 | 170 | 110 | 100 | Front and back sides 0-180 | Heavy | 20 | 1.2 | 2 | 1.5 | ||
| Remark | Customizable | Customizable | Minimum custom order: 110; t < 1 mm | Minimum custom order quantity: 100; thickness < 1 mm. | 130–180, featuring an edge-pressing process. | ||||||||

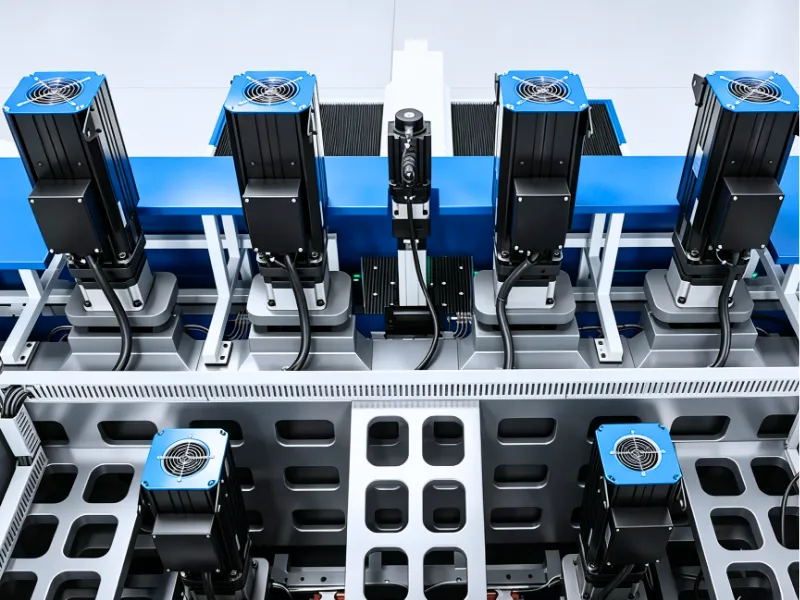

High-performance servo motors deliver powerful output.
Ensure stable motion for high-speed bending cycles.
Reduce mechanical loss for long-term reliable operation.

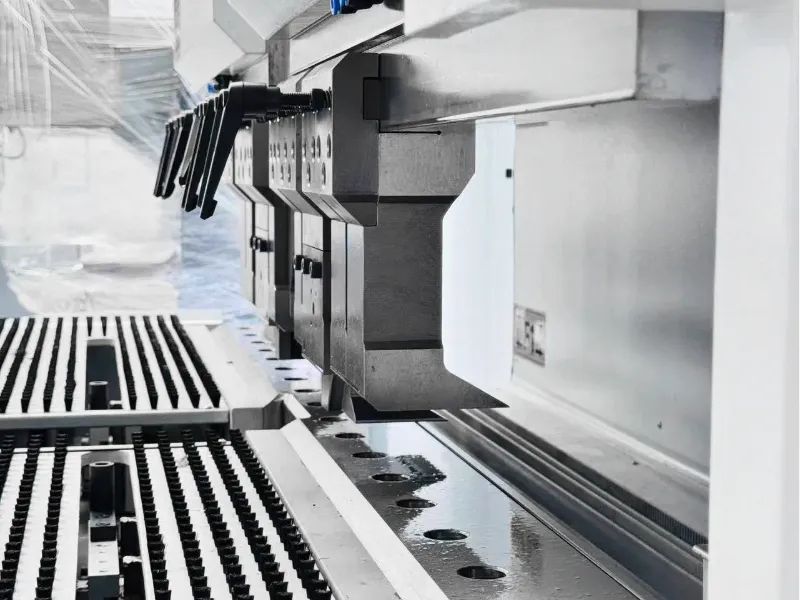

Supports fast tool replacement without extra adjustment.
Fit multiple bending profiles for diverse workpiece demands.

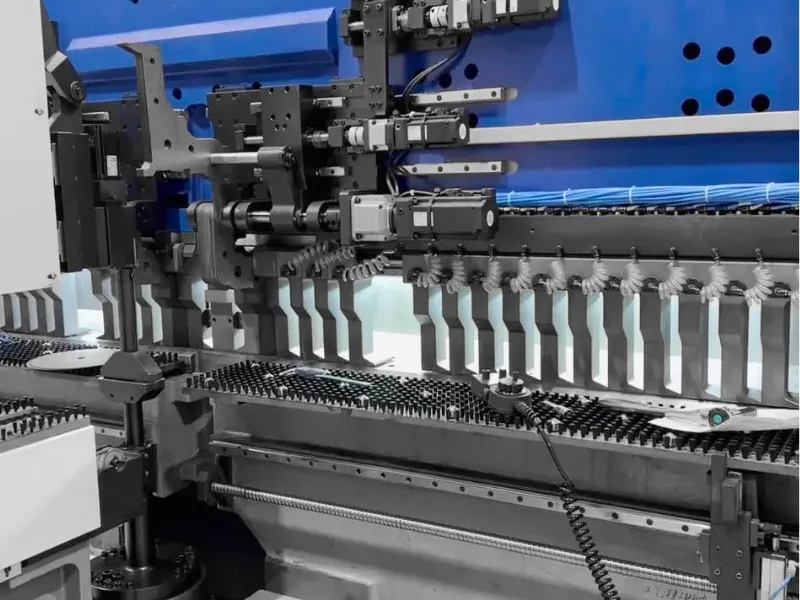

Auto selects proper tools according to program commands.
Eliminate manual tool-swap to save setup time.
Realize unmanned continuous batch production.

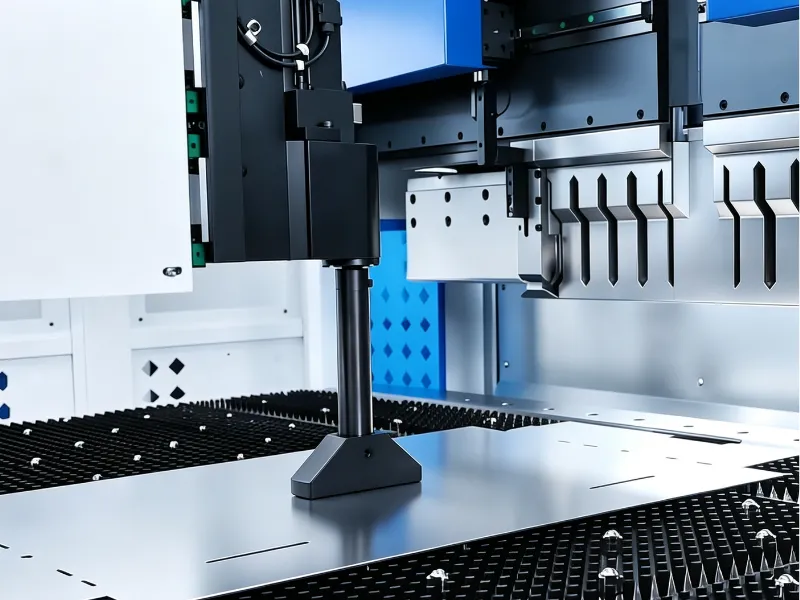

Firmly holds sheet metal during whole bending process.
Avoid workpiece offset to guarantee angle repeatability.
Adapt to different sizes of metal plates.

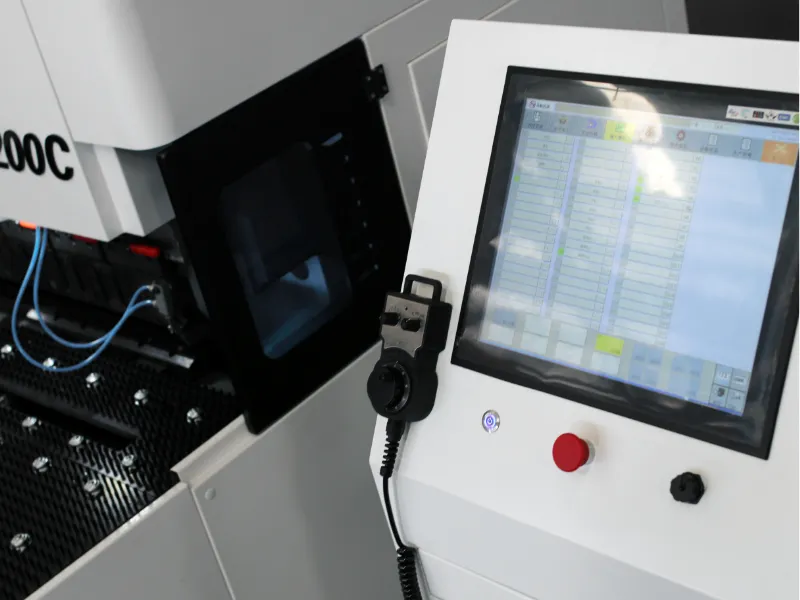

Intuitive touch-screen interface for easy parameter setup.
Import drawings directly for one-key program generation.
Real-time monitoring of machine running status.

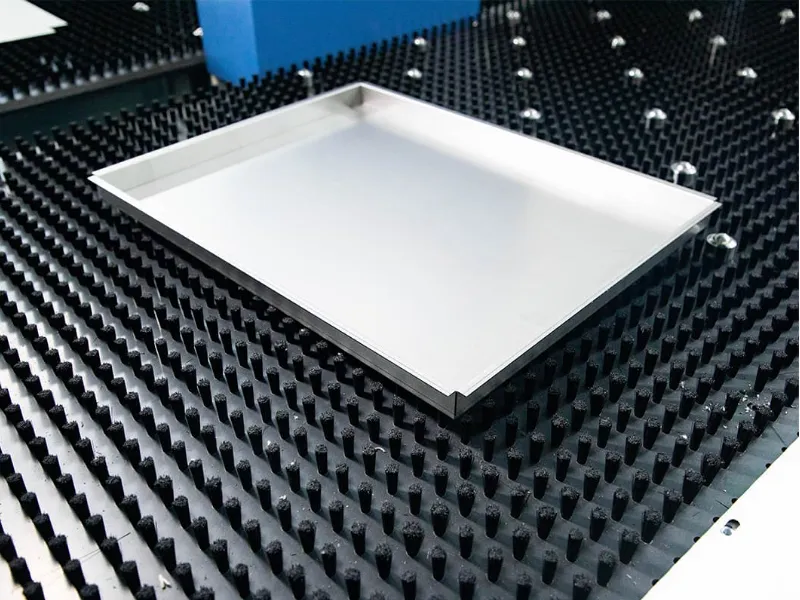

Soft brush surface prevents scratches on workpiece surface.
Support free movement of large-size sheet metal.
Protect finished panels from surface damage.
Fully automated robotic loading and unloading enables lights-out production.
24/7 continuous operation dramatically increases production output.
Consistent quality regardless of operator skill level or shift changes.
Ideal for high-volume, repeat-order bending of standard parts.
